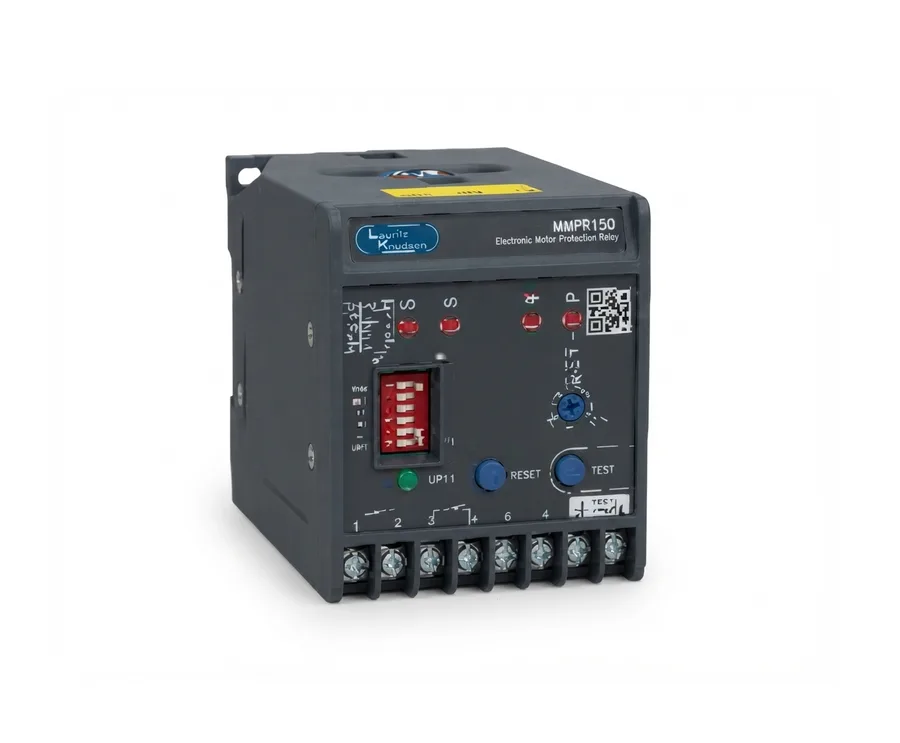

Electronic Motor Protection Relay eMPR150 (16-88 A, 230V AC)

Description

eMPR150 Electronic Motor Protection Relay - Aux Supply 230V AC, Thermal O/L Range 16-88 A, Device Code 49, 51LR, 37, 46, Protections: Overload, Locked Rotor, Single Phasing, Current Unbalance, Under Current, Inbuilt CT's (1 A to 88 A); Trip indication; Test facility; Site Selectable - Fail-safe / Non Fail-safe mode; Selectable trip class - 10A, 10, 20 and 30 as per IEC 60947-4-1
