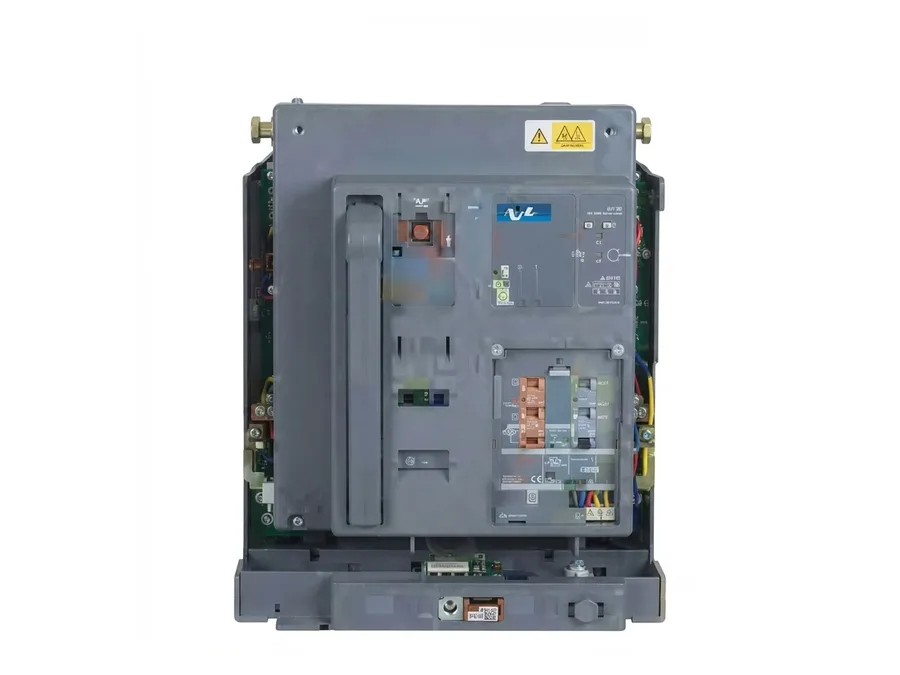

Lauritz Knudsen C-POWER S1 1000A 4 Pole Draw-out ACB Thermal-Magnetic DN1 MDO

Description

Lauritz Knudsen C-POWER S1 1000A 4 Pole Draw-out ACB Thermal-Magnetic DN1 MDO (Cat. No. SL953530000). Rated Current: 1000A; Poles: 4 Pole; Version: Draw-out; Version Code: MDO; Operation: Manual; Release: Thermal-Magnetic DN1; Breaking Capacity: 50kA (Icu = Ics = Icw for 1 sec); Rated Neutral Pole: 100%; Standard: IS/IEC 60947-2 & IEC 60947-2; Inbuilt Features: 2NO+2NC aux contact (MDO) or 6NO+6NC aux contact (EDO), safety shutter assembly, racking handle, door sealing frame, push-button cover and rating error preventor; Catalogue Note: Catalogue number formed by adding the 0000 suffix noted on the source page. Catalogue MRP: 400400; standard package: 1.

Specifications
