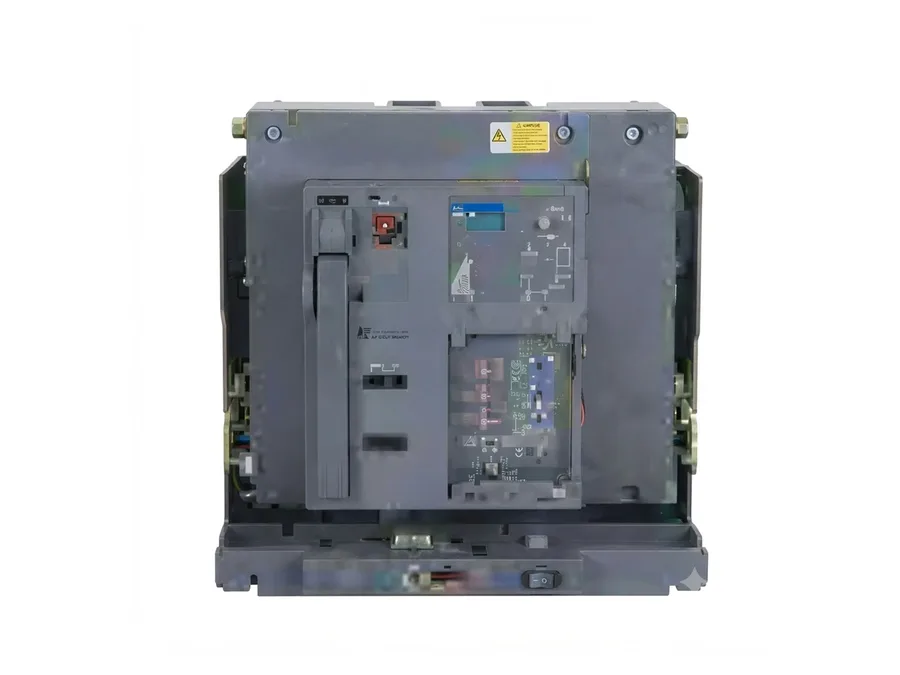

Lauritz Knudsen C-POWER S1 1250A 3 Pole Fixed ACB Thermal-Magnetic DN1 MF

Description

Lauritz Knudsen C-POWER S1 1250A 3 Pole Fixed ACB Thermal-Magnetic DN1 MF (Cat. No. SL954840000). Rated Current: 1250A; Poles: 3 Pole; Version: Fixed; Version Code: MF; Operation: Manual; Release: Thermal-Magnetic DN1; Breaking Capacity: 50kA (Icu = Ics = Icw for 1 sec); Rated Neutral Pole: 100%; Standard: IS/IEC 60947-2 & IEC 60947-2; Inbuilt Features: 2NO+2NC aux contact (MF) or 6NO+6NC aux contact (EF), door sealing frame and push-button cover; Catalogue Note: Catalogue number formed by adding the 0000 suffix noted on the source page. Catalogue MRP: 207600; standard package: 1.
