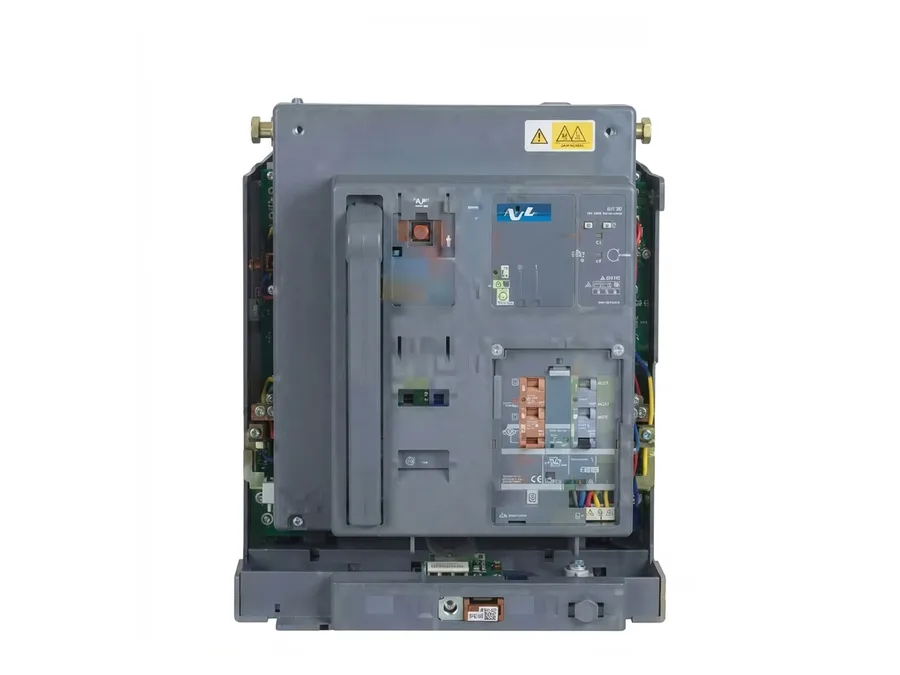

Lauritz Knudsen C-POWER S1 630A 4 Pole Draw-out ACB Microprocessor Based SR18G EDO

Description

Lauritz Knudsen C-POWER S1 630A 4 Pole Draw-out ACB Microprocessor Based SR18G EDO (Cat. No. SL960710000). Rated Current: 630A; Poles: 4 Pole; Version: Draw-out; Version Code: EDO; Operation: Electrical; Release: Microprocessor Based SR18G; Breaking Capacity: 50kA (Icu = Ics = Icw for 1 sec); Rated Neutral Pole: 100%; Standard: IS/IEC 60947-2 & IEC 60947-2; Inbuilt Features: 2NO+2NC aux contact (MDO) or 6NO+6NC aux contact (EDO), safety shutter assembly, racking handle, door sealing frame, push-button cover and rating error preventor; Electrical Version Includes: 240V AC shunt trip coil, closing coil and motor for electrical charging; SR18G Customization M.R.P.: SR18G customization M.R.P.: bus-coupler (without protection) reduce 8400; SR18G+D (LSING + current metering) add 22600; SR18Gi+D (LSING + current metering + ZSI) add 29900; Catalogue Note: Catalogue number formed by adding the 0000 suffix noted on the source page. Catalogue MRP: 456700; standard package: 1.
