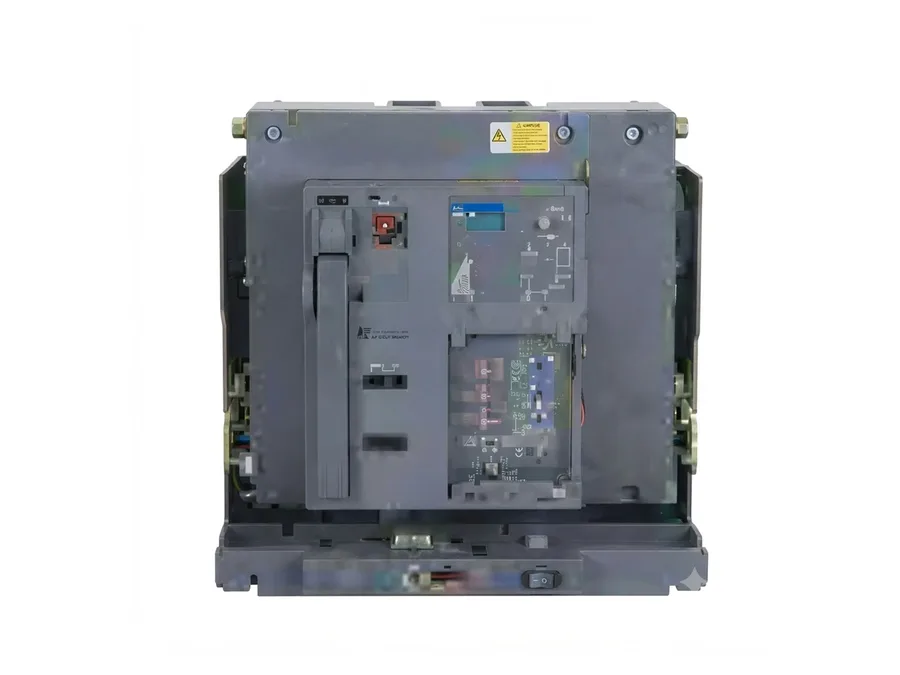

Lauritz Knudsen C-POWER S1 630A 4 Pole Fixed ACB Thermal-Magnetic DN1 EF

Description

Lauritz Knudsen C-POWER S1 630A 4 Pole Fixed ACB Thermal-Magnetic DN1 EF (Cat. No. SL955110000). Rated Current: 630A; Poles: 4 Pole; Version: Fixed; Version Code: EF; Operation: Electrical; Release: Thermal-Magnetic DN1; Breaking Capacity: 50kA (Icu = Ics = Icw for 1 sec); Rated Neutral Pole: 100%; Standard: IS/IEC 60947-2 & IEC 60947-2; Inbuilt Features: 2NO+2NC aux contact (MF) or 6NO+6NC aux contact (EF), door sealing frame and push-button cover; Electrical Version Includes: 240V AC shunt trip coil, closing coil and motor for electrical charging; DN1 Electrical Protection Option: Either earth fault or undervoltage protection can be used; Catalogue Note: Catalogue number formed by adding the 0000 suffix noted on the source page. Catalogue MRP: 281700; standard package: 1.
