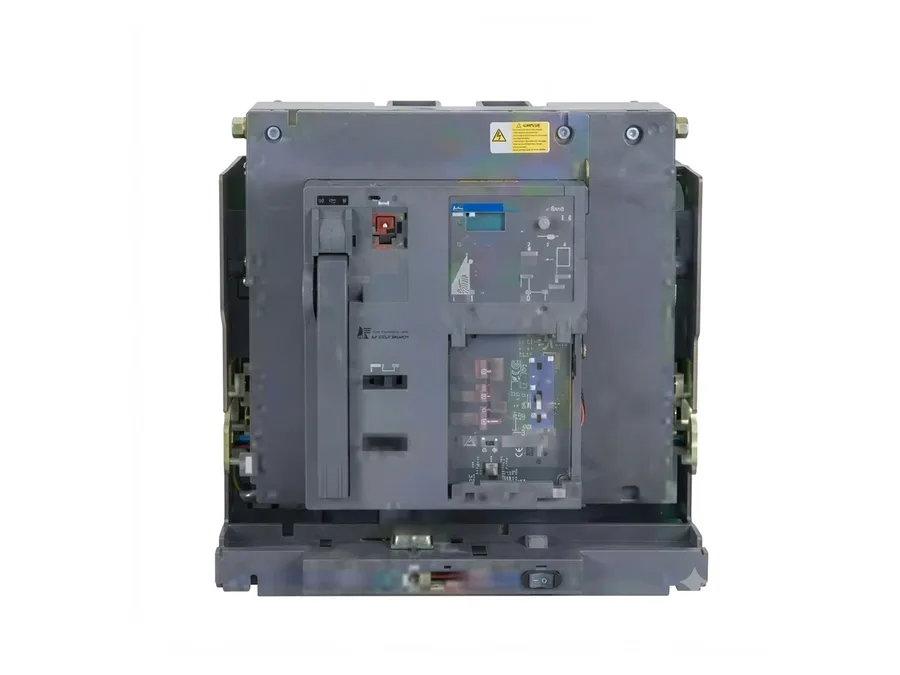

Lauritz Knudsen C-POWER S1 800A 3 Pole Fixed ACB Microprocessor Based SR18G EF

Description

Lauritz Knudsen C-POWER S1 800A 3 Pole Fixed ACB Microprocessor Based SR18G EF (Cat. No. SL955720000). Rated Current: 800A; Poles: 3 Pole; Version: Fixed; Version Code: EF; Operation: Electrical; Release: Microprocessor Based SR18G; Breaking Capacity: 50kA (Icu = Ics = Icw for 1 sec); Rated Neutral Pole: 100%; Standard: IS/IEC 60947-2 & IEC 60947-2; Inbuilt Features: 2NO+2NC aux contact (MF) or 6NO+6NC aux contact (EF), door sealing frame and push-button cover; Electrical Version Includes: 240V AC shunt trip coil, closing coil and motor for electrical charging; SR18G Customization M.R.P.: SR18G customization M.R.P.: bus-coupler (without protection) reduce 8400; SR18G+D (LSING + current metering) add 22600; SR18Gi+D (LSING + current metering + ZSI) add 29900; Catalogue Note: Catalogue number formed by adding the 0000 suffix noted on the source page. Catalogue MRP: 238800; standard package: 1.

Specifications
