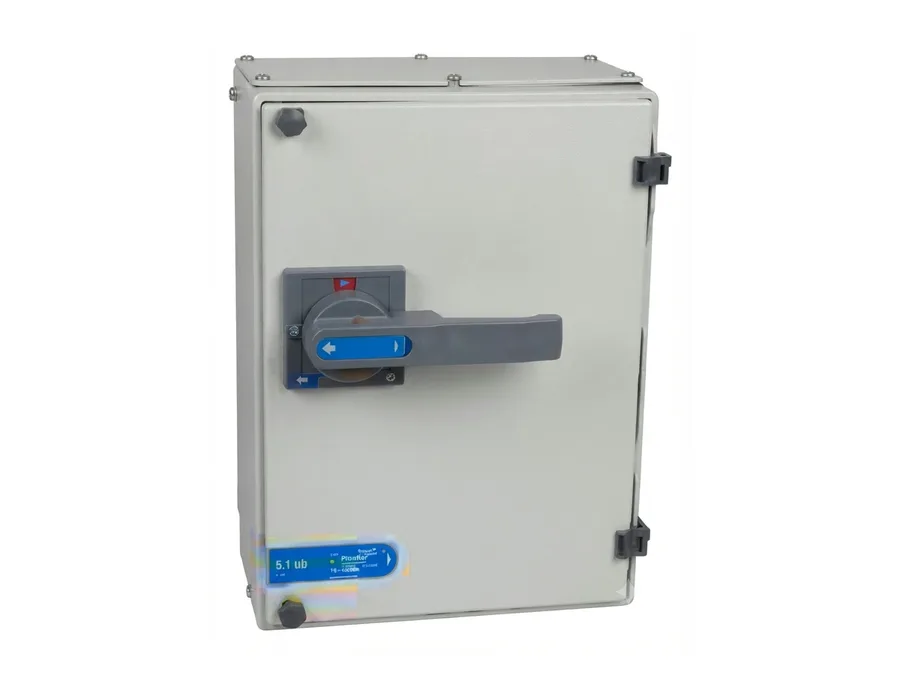

Lauritz Knudsen FN 63 TPN / FP CE Sheet Steel Enclosure Switch Disconnector Fuse

Description

Lauritz Knudsen FN 63 TPN / FP CE Sheet Steel Enclosure Switch Disconnector Fuse (Cat. No. SK904840000). Product Type: FN Switch-Disconnector-Fuse; Type: FN 63 TPN / FP CE; Rated Current: 63A; Frame: Frame 1; Execution: Sheet Steel Enclosure; Suitable Fuse-Link: HF Size 14x51; Rated Voltage: 415V AC; Utilization Category: AC 23A; Key Features: Conforms to IEC 60947-3 and IS/IEC 60947-3, Door interlock and padlock facility, Telescopic shaft for depth adjustment, Phase barriers included, Spacious sheet steel enclosure, Separate cable gland box not required, Suitable for cylindrical/DIN fuse-link; Notes: HRC fuses excluded from price, Supplied without terminal shrouds, For 690V AC application, contact branch office, Enclosed units can be replaced with FN TPN SDF open-execution units; Suitable Fuse Current Range: 2 to 63A; Poles: TPN / FP; CE Handle: Door interlock facility without defeat feature. Catalogue MRP Rs. 10,300 per unit; standard package 1.
