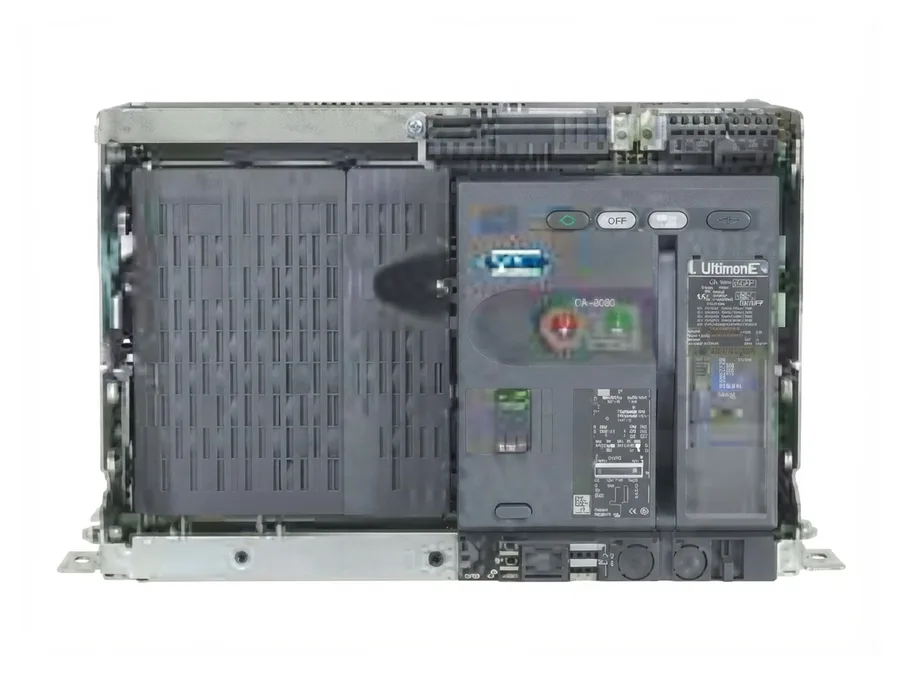

Lauritz Knudsen U-POWER OMEGA UW1-10N 1000A 3 Pole Manual Draw-out ACB UW-MTX1.5G 690V AC

Description

Lauritz Knudsen U-POWER OMEGA UW1-10N 1000A 3 Pole Manual Draw-out ACB UW-MTX1.5G 690V AC (Cat. No. UW110NXD01900). Series: U-POWER OMEGA; Category: Air Circuit Breakers; Type: UW1-10N; Frame Size: 1; Rated Current: 1000A; Poles: 3 Pole; Operation: Manual; Version: Draw-out; Version Code: MDO; Rated Voltage: 690V AC; Breaking Capacity: 50kA at 415V AC; Protection and Control Unit: UW-MTX1.5G; Protection Functions: LSING; Setting Interface: BCD switches; Metering: Current metering. Catalogue MRP: 354700; standard package: 1.
