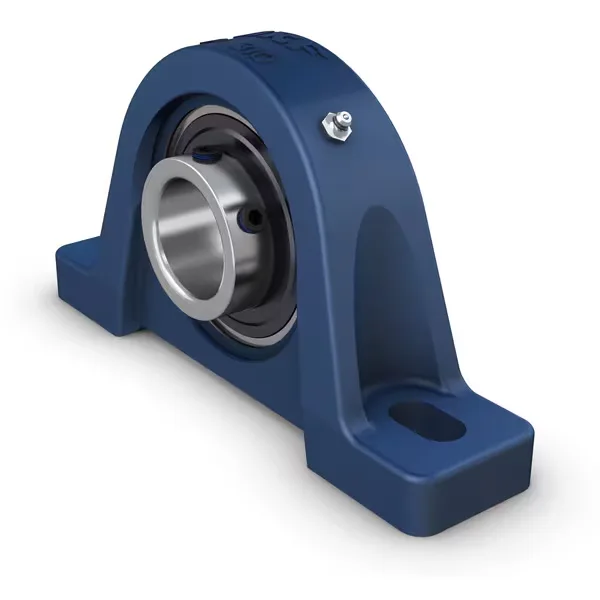

Ball Bearing Pillow Block Units - Metric Series dia 35 mm SKF

Description

SKF metric pillow block ball bearing units for a 35 mm shaft diameter are designed for smooth rotation, self-alignment capability, and reliable performance under medium radial loads. Key ISO/JIS designations include the SKF Y-Bearing Plummer Block Unit (SY 35 TF / SYJ 35 TF) and UCP 207. Key Technical Specifications for 35 mm Metric Units Specification Parameter Technical Value / Detail Shaft Diameter (d) 35 mm Centre Height (H) 47.6 mm Total Height (H_2) 95 mm Overall Length (L) 160 mm – 167 mm Mounting Hole Distance (J) 126 mm Housing Foot Width (A) 45 mm Housing Material Grey Cast Iron (e.g., SYJ 507 / P207 series) Shaft Locking Mechanism Set screws (grub screws) on extended inner ring Insert Bearing Ref. YAR 207-2F (or equivalent 207 insert) Basic Dynamic Load Rating (C) 25.5 kN Basic Static Load Rating (C_0) 15.3 kN Limiting Speed ~5,300 r/min Sealing System Contact seals with steel flingers on both sides
