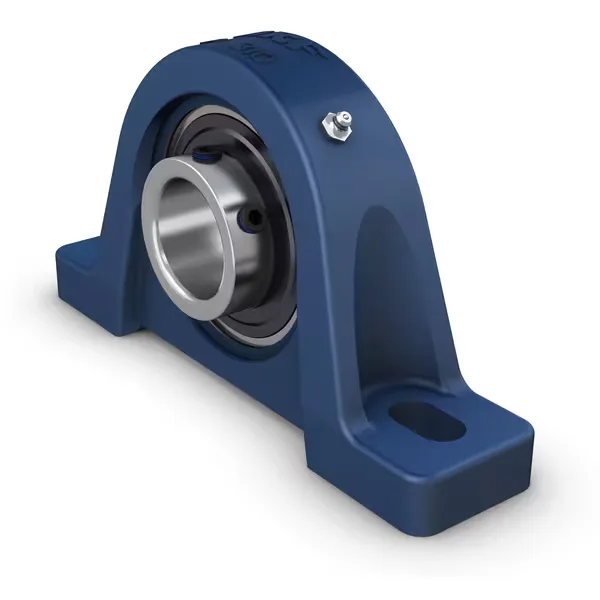

Ball Bearing Pillow Block Units - Metric Series dia 60 mm SKF

Description

SKF metric pillow block ball bearing units designed for a 60 mm shaft diameter are built for high stability and reliable alignment under moderate to heavy radial loads. Common industrial designations include the SKF Pillow Block Bearing (SYJ 60 TF / SY 60 TF) and the JIS-compliant SKF Y-Bearing Plummer Block Unit (UCP 212). Key Technical Specifications for 60 mm Metric Units Specification Parameter Technical Value / Detail Bore / Shaft Diameter (d) 60 mm Centre Height (H) 69.8 mm Total Height (H_2) 138 mm Overall Length (L) 240 mm Mounting Hole Spacing (J) 184 mm Housing Foot Width (A) 60 mm Housing Material Grey Cast Iron (e.g., SYJ 512 / P212 housing series) Shaft Locking Method Set screws (grub screws) on extended inner ring Insert Bearing Ref. YAR 212-2F (or equivalent insert) Basic Dynamic Load Rating (C) 52.7 kN Basic Static Load Rating (C_0) 36 kN Sealing & Lubrication Contact seals with metal flingers & pre-greased with re-lubrication nipple
