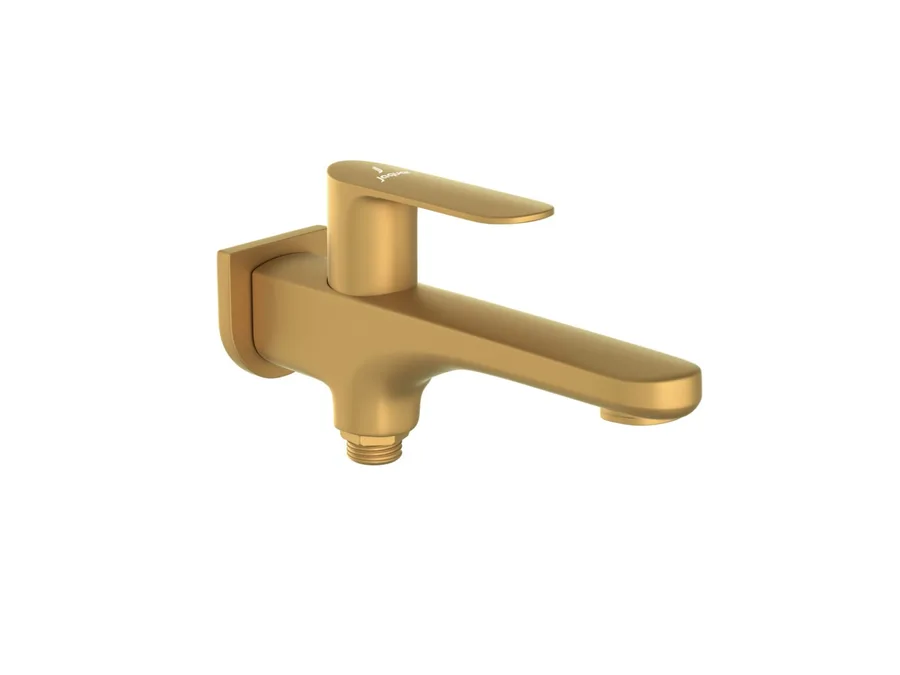

Jaquar Opal Prime 2-way bib cock tap with wall flange in Gold Matt PVD finish, model OPP-GMP-15041PM. Features a 2-way bib cock design and includes a wall flange.
Specifications
Brand
Jaquar
Series
Opal Prime
Plating
Nickel-10.0 Micron Chromium-0.3 Micron
Adhesion
(Pass)
Flow_Rate
16.89 LPM @ 3 Bar
Life_Cycle
EN 200: 200,000 Cycles (Standard)
Salt_Spray
(500 Hrs + Validated)
Description
2 Way Bib Cock With Wall Flange
Aerator_Size
WRAS, ACS Approved (M20X1)
Product_Code
OPP-CHR-15041PM
Flow_Regulator
S (Product Should Be Ordered With Suffix As G-2.5 LPM, GA-6.0 LPM,
Water_Tightness
16 Bar (Pass)
Brass_Specification
Brass Rod As Per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Brass Sheets As Per IS:410-1977
Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Fittings : Components Have WRAS Approved For Food Grade Conformity With Brass Housing
and Spindle
Pressure_Resistance
25 Bar (Pass)
Available_Colour_Finishing
(BGP), Black Matt (BLM), Gold Bright PVD (GBP), Gold Matt PVD (GMP), Graphite (GRF) &
