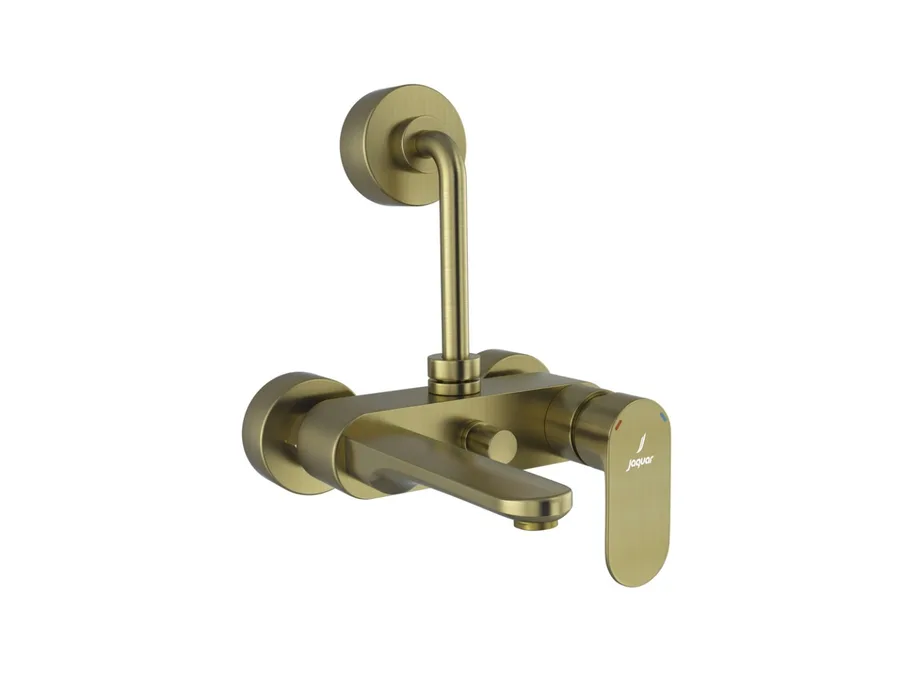

Jaquar Opal Prime single lever wall mixer with overhead shower provision in Antique Bronze finish, model OPP-ABR-15117PM. Includes a 115 mm bend pipe on the upper side, connecting legs and wall flanges for an overhead shower connection.
Specifications
Brand
Jaquar
Series
Opal Prime
Plating
Nickel-10.0 Micron Chromium-0.3 Micron
Adhesion
(Pass)
Flow_Rate
20.46 LPM @ 3 Bar
Life_Cycle
EN 817: 70,000 Cycles (Standard)
Salt_Spray
(500 Hrs + Validated)
Description
Upper Side, Connecting Legs & Wall Flanges
Aerator_Size
WRAS, ACS Approved (24X1)
Product_Code
OPP-CHR-15117PM
Flow_Regulator
S (Product Should Be Ordered With Suffix As G-2.5 LPM, GA-6.0 LPM, GB-8.0
Water_Tightness
16 Bar (Pass)
Brass_Specification
Brass Sheets As Per IS:410-1977
Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Brass Pipe As Per IS:407-1996
Cu (62.0-65.0), Pb (0.0-0.3), Fe (0.0-0.01), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge With Temperature Limiter
Cartridge With Brass Spindle
